Cutting angle bars and other profiles with weld preparation

Profile Cutting Services

  • Minimum
    75x75 mm
    3x3"
  • Maximum
    1220x430 mm
    48x16.9"

Let us do the profile cutting!

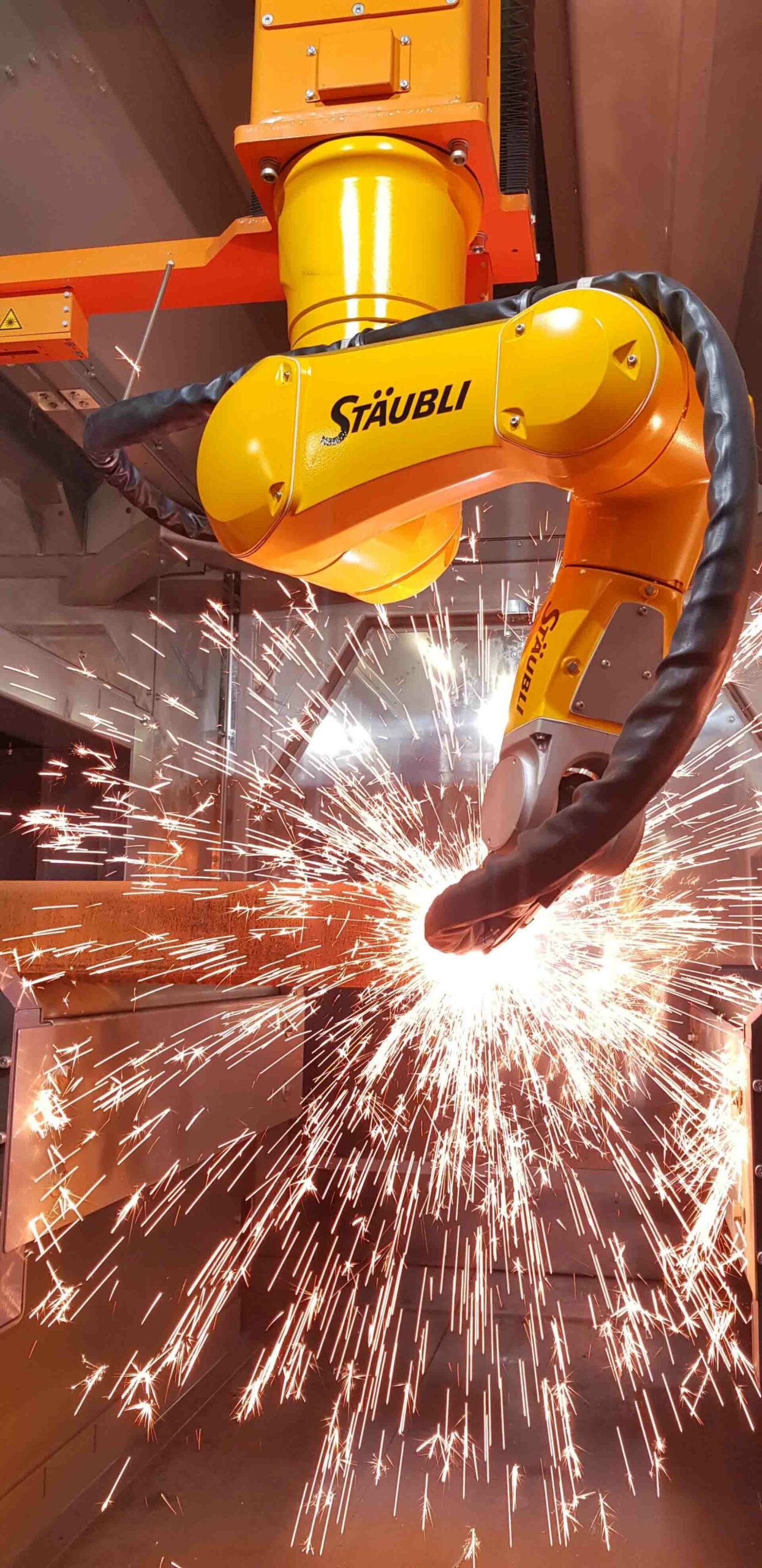

You receive a ready-to-weld package, so you can focus on fast and easy fitting and welding. We provide a range of profile cutting services to help you cut any shape on your steel material with utmost accuracy and with a bevel and intermediate cut-outss. Our CNC machines for cutting angle bars etc. are developed and produced by us.

Features

Profiling Shapes
Added Value
Extra
  • End cuts

    End cuts of part ends

  • Cut-outs

    Cut-outs in the web of a profile for crossing profiles

  • Penetrations

    Penetrations such as holes for piping

  • One stop shop for all shipbuilding profiles

    We can cut any shipbuilding stiffener profile
    We can cut all the stiffeners you need for fabricating your vessels: bulbs, strips, angles and T bars.

  • Lead time

    We help to reduce your total processing time!
    The perfect weldpreparation reduces your fitting and welding time. And with 6 cutting machines and a flexible work capacity, we ensure that you can start welding sooner than when you would make the preparation yourself.

  • Traceability of Parts

    The extra step to further reduce your assembly time and costs

    HGG is approved by Lloyd’s Register to remark materials and transfer heat numbers by EN 10204:2004 (3.1.B and 3.1.C). Nesting list and re-stamping certificate are available on request to improve quality and minimize manual efforts.

Especificaciones

Tamaño75x75mm -1220x430mm (3x3" - 48x16.9")Seguimiento y localizaciónPermanent and non permanent marking
UbicaciónAt HGGCADAutocad, Tekla and many others
MaterialAngle bar (un)equal, T bar, ChannelCertificacionesISO 9001; Lloyds 3.1 & 3.2;
Kelby Beukema, Sales Engineer- HGG

“We can cut all the stiffeners you need for fabricating your vessels: bulbs, strips, angles and T bars.”

Kelby Beukema, Sales Engineer- HGG
Play video

Cutting Angle Bars Application

What is your greatest worry in a fabrication process? Is the it complexity of the design, poor production flow management, too much material waste, loss of control over the operating expenses or the lack of highly skilled welders? Then, how do you deal with the increasingly tough demands and regulations on welded structural design?

Cargo Ships

Achieving fabrication efficiency and high throughput are key goals within the highly competitive cargo vessels fabrication market. Shipyards using traditional profile cutting methods experience difficulties in achieving those targets. We can cut your material on our highly productive stiffener profiles cutting machines, so that you can reach your fabrication targets.

Industry application: Cutting angle bars for flat panel, double bottom constructions, subassemblies, bulkheads, webs, micro panel in LNG carriers, super tankers, container ships, chemical tankers, bulk carriers, RoRo vessels, ice breakers, FPSO’s Supply boat, crane ships, Hopper

Naval Ships

Naval ships are fabricated out of a large number of different in size and length stiffeners. Material handling, material sorting and part nesting are thus extremely complex. We can cut your material on our stiffener cutting machines, thus help you to shorten your fabrication cycle significantly.

Industry application: Cutting angle bars for flat panel, double bottom constructions, subassemblies, bulkheads, webs, micro panel in air craft carriers, patrol boats, cruisers, frigates, hospital ships etc.

Mega Yachts

In the demanding world of fabrication of mega yachts, flexibility is key to be able to deal with last minute changes. Quality comes second best and asks for handling production batches of numerous short and small stiffeners of exotic materials. We can cut your material on our profile cutting machines, which are highly productive and can handle a wide size range.

Industry application: Cutting angle bars for flat panel, double bottom constructions, subassemblies, bulkheads, webs, micro panel in super yachts, mega yachts, sailing yachts, motor yachts etc.

Cruise Ships

Cruise ships are also characterised by an enormous volume and variety of small and short stiffeners. Automation in fabrication has been long adopted in these yards where strict requirements are put forward in respect to integration with the yards panel lines. We have extensive experience in profile cutting and can therefore help you optimize your process.

Industry application: Cutting angle bars for flat panel, double bottom constructions, subassemblies, bulkheads, webs, micro panel in cruise ships, cruise liners, passenger ships etc.

Step 1

Contact us and get an expert advice on profile cutting
Years of experience has helped us to be able to give you expert advice on a smooth transfer of 3D-models into cutting files, welding details and optimized nesting.

Step 2

Send us your preliminary drawings
With our in-house developed software, we offer you freedom to design. We connect to all major CAD-systems. Time consuming manual programming is not necessary. Send us your digital drawings or NC data and we will import them into our CAD-CAM system.

Step 3

Send us your raw materials and tell us your schedule
Based on your drawings our experienced machine operators cut your material into ready-to-weld parts. We stay flexible in order to fit into your schedule.

Step 4

Receive all cut parts ready for fitting and welding
After cutting your profiles, we bring them to you, ready for fitting and welding. So you can concentrate on your core-business.

Want to know more about our Profile Cutting Services?

Ask our 3D Profiling experts:
